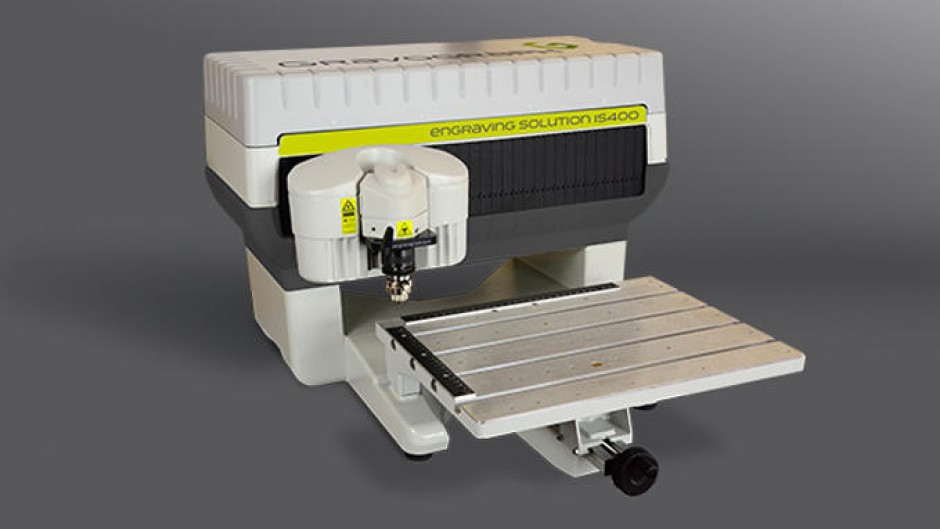

Connected to a computer, it uses Gravostyle software by Gravograph. The IS400 machines as standard, come with automatic surface sensors and laser beam (Gravograph innovation) which make it simple to use and easy to position the engraver on the engravable object.
The IS400 is a PC connected solution.
In addition, its design gives you complete access to the engravable object which facilitates the placement, adjustment and removal of items from the machine.
| X and Y axis | Engraving area 305 x 210 mm |
| Flatness tolerance 0.2 mm | |
| Max. clearance in X axis between columns 370 mm | |
| Max. clearance in Y axis unlimited | |
| Z axis | Spindle travel 40 mm |
| Spindle travel at bottom of vice 120 mm | |
| Spindle travel with clamping table 33 mm | |
| Spindle | Tool diameter 4.36 mm |
| Rotation speed 11 to 20 000 rpm | |
| Direct current mechanical power 75 W | |
| Clamping systems | Vice concentric holding |
| Opening of vice jaws 230 mm | |
| Height 76 mm | |
| Weight | 50 kg |
The design, robustness and capabilities of the IS400 give it some huge advantages: reliability, quality and efficiency. Plus, its performance electronics optimise turnaround times.
The adjustable rotation speed of 11 000-20 000 rpm allows you to work on different materials.
Gravostyle, the software developed by Gravograph and specially designed for our machines, allows you to design your work and carry it out efficiently.
The IS400 allows you to engrave very large and cylindrical items by simply adapting the volume base.
A complete range of spindles, clamping accessories and tools to suit the evolution of applications.
The Automatic Plate Feeder accessory allows you to load a series of plaques that are fed in, engraved and released automatically.
